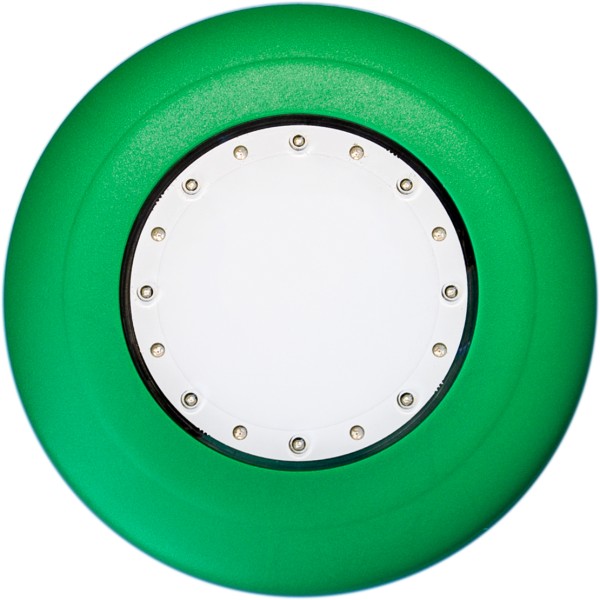

KTTA - Capacitive Switch Dynamic with plastic housing

Assembly on wall or behind glass
Switches by touching
Optical feedback by LED
Water- and oil-tight
Fixed cable
Individually configurable: Glass or plastic, colour, pictogramm

Pictograms:

Without, Hand, Wheelchair, Door, Double arrow

Colours:

Green, Red, Black, White, Blue

Technical specifications:

• Operating voltage:  16,8… 32 V DC
• Signal output: PNP/NPN
• Duration output signal: 300 msec
• Connection: Fixed cable 0,2 m PUR
• Ambient temperature: -30 … +80°C
• Degree of protection: IP69K at the front side

 Pictograms and all options are available during the order transaction
